CatalogItemDiagramListing

CatalogItemDiagramListing displays a Hot Spot diagram image and supports grid or list presentation of diagram data.

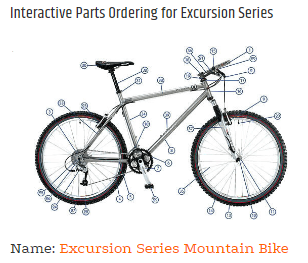

CatalogItemDiagramListing Hot Spot diagram

Configurable properties

Property	Default	Valid values or format	Effect
`HotSpotDiagramEmptyDisplay` Boolean	`false`	`true`, `false`	Controls displaying the list and grid when no data is available.
`HotSpotDiagramFolderLocation` String	Not specified		Sets the Hot Spot diagram folder location.
`HotSpotDiagramGridAlwaysDisplayPager` Boolean	`false`	`true`, `false`	Controls displaying the grid pager for fewer than two pages.
`HotSpotDiagramGridDisplay` Boolean	`true`	`true`, `false`	Selects grid or list display when data is available.
`HotSpotDiagramGridDisplayDescriptionColumn` Boolean	`true`	`true`, `false`	Controls diagram-description column display.
`HotSpotDiagramGridDisplayDescriptionHeader` String	`"Description"`		Sets the diagram-description header.
`HotSpotDiagramGridDisplayDiagramColumn` Boolean	`true`	`true`, `false`	Controls diagram-image column display.
`HotSpotDiagramGridDisplayDiagramHeader` String	`"Diagram"`		Sets the diagram-image header.
`HotSpotDiagramGridDisplayHeaders` Boolean	`true`	`true`, `false`	Controls grid-header display.
`HotSpotDiagramGridDisplayHeadlineColumn` Boolean	`true`	`true`, `false`	Controls diagram-headline column display.
`HotSpotDiagramGridDisplayHeadlineHeader` String	`"Head Line"`		Sets the diagram-headline header.
`HotSpotDiagramGridDisplayNameColumn` Boolean	`true`	`true`, `false`	Controls diagram-name column display.
`HotSpotDiagramGridDisplayNameHeader` String	`"Name"`		Sets the diagram-name header.
`HotSpotDiagramGridPageSize` Integer	see `ComConfig.CatalogListingPageSize`		Sets the Hot Spot diagram grid page size.
`HotSpotDiagramListColumns` Integer	`2`		Sets the diagram-list column count.
`HotSpotDiagramListGridLines` String	`"None"`		Controls diagram-list grid lines.
`HotSpotDiagramListRepeatDirection` String	`"Horizontal"`		Sets the diagram-list repeat direction.
`HotSpotDiagramListRepeatLayout` String	`"Table"`		Sets the diagram-list layout type.
`HotSpotDiagramNoDataMessage` String	`"Sorry, there are no Diagrams associated with this Item."`		Sets the no-data message.
`HotSpotDiagramPhotoWidth` Integer	`100`		Sets the Hot Spot diagram photo width.
`HotSpotDiagramURL` String	`"~/CatalogHotSpot.aspx"`		Sets the Hot Spot diagram link URL.

SitePages.config example

The following example loads CatalogItemDiagramListing.ascx and applies the documented literal defaults. The following properties are omitted because they do not have documented literal defaults: HotSpotDiagramFolderLocation, HotSpotDiagramGridPageSize.

<Control src="CatalogItemDiagramListing.ascx"
         HotSpotDiagramEmptyDisplay="false"
         HotSpotDiagramGridAlwaysDisplayPager="false"
         HotSpotDiagramGridDisplay="true"
         HotSpotDiagramGridDisplayDescriptionColumn="true"
         HotSpotDiagramGridDisplayDescriptionHeader="Description"
         HotSpotDiagramGridDisplayDiagramColumn="true"
         HotSpotDiagramGridDisplayDiagramHeader="Diagram"
         HotSpotDiagramGridDisplayHeaders="true"
         HotSpotDiagramGridDisplayHeadlineColumn="true"
         HotSpotDiagramGridDisplayHeadlineHeader="Head Line"
         HotSpotDiagramGridDisplayNameColumn="true"
         HotSpotDiagramGridDisplayNameHeader="Name"
         HotSpotDiagramListColumns="2"
         HotSpotDiagramListGridLines="None"
         HotSpotDiagramListRepeatDirection="Horizontal"
         HotSpotDiagramListRepeatLayout="Table"
         HotSpotDiagramNoDataMessage="Sorry, there are no Diagrams associated with this Item."
         HotSpotDiagramPhotoWidth="100"
         HotSpotDiagramURL="~/CatalogHotSpot.aspx" />

Add this <Control> element to the appropriate page placeholder as described in The SitePages.config File.

Inherited properties

CatalogItemDiagramListing inherits listing behavior from ListingControl and shared conditions from CyberStoreBaseControl.
