CatalogItemTileListingControl

CatalogItemTileListingControl is a legacy tiled item listing control introduced in v2.6. The legacy source describes responsive tiles, configurable paging, detail links, and optional characteristic filtering.

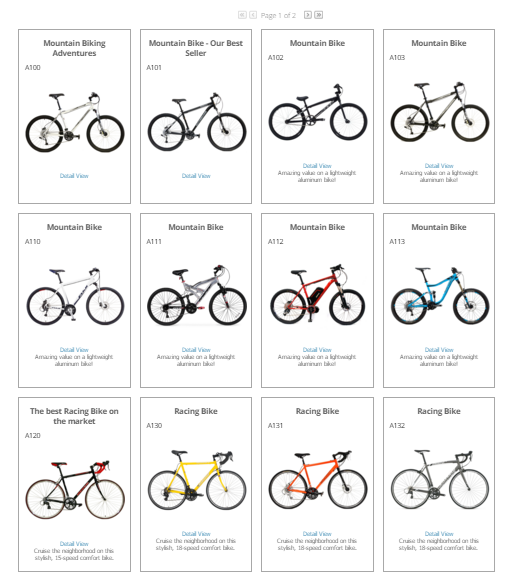

CatalogItemTileListingControl tiled item listing

Configurable properties

Property	Default	Valid values or format	Effect
`CurrentPage` Not specified	Not specified		Sets the current page.
`CurrentSortOrder` String	see GetDefaultSort()		Sets the current sort order.
`DataSource` Not specified	Not specified		Sets the listing data source.
`DisplayControl` Not specified	Not specified		Sets the display control.
`FilterDataTable` Not specified	Not specified		Sets the filter data table.
`LearnMoreLinkCSSClass` String	`"Learn More Link"`		Sets the CSS class for the detail link.
`LearnMoreLinkText` String	`"Learn More"`		Sets the detail-link text.
`PageSize` Integer	see `ComConfig.CatalogListingPageSize`		Sets the number of items shown per page.
`photoLocation` String	see UsePhoto		Sets the photo location.
`PhotoWidth` Integer	`0`		Sets the photo width.
`ShowTileBorder` Boolean	`true`	`true`, `false`	Controls tile-border display.
`TileHeight` Integer	`350`		Sets the tile height.
`TileWidth` Integer	`25`		Sets the tile width.
`UsePhoto` String	`"Photo1"`	`"Photo1"`, `"Photo2"`	Selects the photo to use.

SitePages.config example

The following example loads CatalogItemTileListingControl.ascx and applies the documented literal defaults. The following properties are omitted because they do not have documented literal defaults: CurrentPage, CurrentSortOrder, DataSource, DisplayControl, FilterDataTable, PageSize, photoLocation.

<Control src="CatalogItemTileListingControl.ascx"
         LearnMoreLinkCSSClass="Learn More Link"
         LearnMoreLinkText="Learn More"
         PhotoWidth="0"
         ShowTileBorder="true"
         TileHeight="350"
         TileWidth="25"
         UsePhoto="Photo1" />

Add this <Control> element to the appropriate page placeholder as described in The SitePages.config File.

Inherited properties

CatalogItemTileListingControl inherits listing behavior from ListingControl and shared conditions from CyberStoreBaseControl.
