File_FileUploader Widget

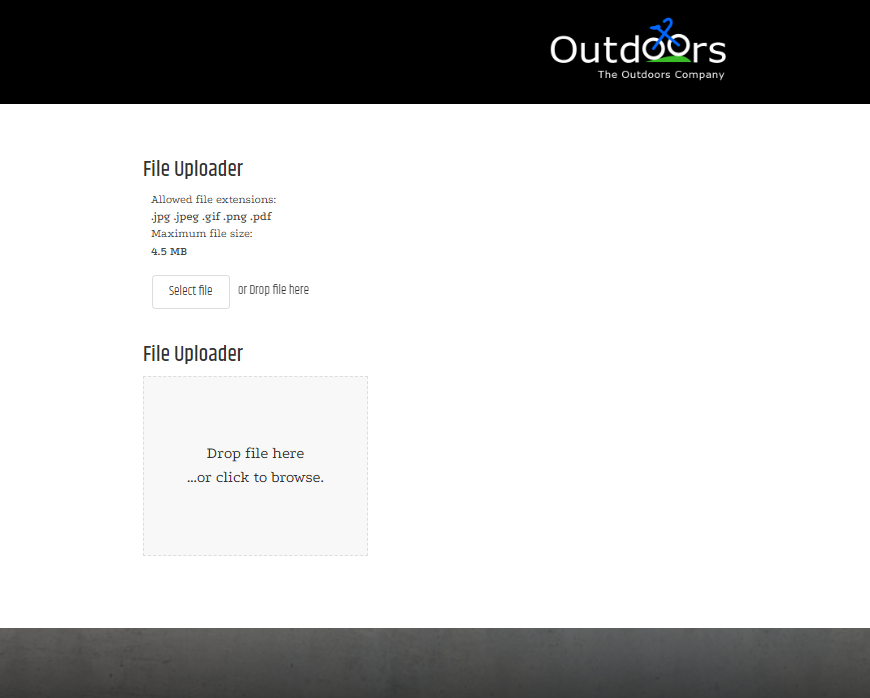

The File_FileUploader widget adds a configurable file-upload control to a page. It supports file-type and size restrictions, optional multiple-file selection, labels, and an optional drag-and-drop area.

Add the widget to a page

<Control src="LoadWidgetControl.ascx"
    FileLocation="File_FileUploader.html"
    Options="allowMultipleFiles: false,
        allowedExtensionsForUpload: '.pdf',
        maxFileSize: 4500000,
        uploadMode: 'useButton'" />

Choose the smallest file-type and size allowance that supports the page workflow. Do not rely on client-side restrictions as the only protection for uploaded files.

Widget options

Option	Default	Valid values or format	Effect
allowMultipleFiles Boolean	Not specified	true, false	Allows a shopper to select one or multiple files.
allowedExtensionsForUpload String	Not specified	File-extension list	Sets the permitted file extensions.
maxFileSize Number	Not specified	File size	Sets the maximum upload size.
displayRules Boolean	Not specified	true, false	Shows or hides the allowed extensions and maximum size.
label String	Not specified	Text	Sets the uploader label.
allowDragAndDropZone Boolean	Not specified	true, false	Shows or hides a drag-and-drop upload area.
strObscureFilename Boolean	Not specified	true, false	Saves uploaded files with randomly generated names.
filePrefix String	Not specified	Text	Adds a prefix to the saved file name.
fileSuffix String	Not specified	Text	Adds a suffix to the saved file name.
uploadMode String	Not specified	'instantly', 'useButton'	Controls when the upload starts.

Validate file uploads

1. Upload an allowed test file that is smaller than the configured size limit.
2. Attempt an unsupported file type and an oversized file; confirm both are rejected.
3. Test the configured multiple-file and drag-and-drop behavior.
4. Confirm uploaded files are available only to authorized users of the page workflow.
